Cable protection box
Fiber Cable Protection Box – Indoor Waterproof Drop Cable Splicing Protection

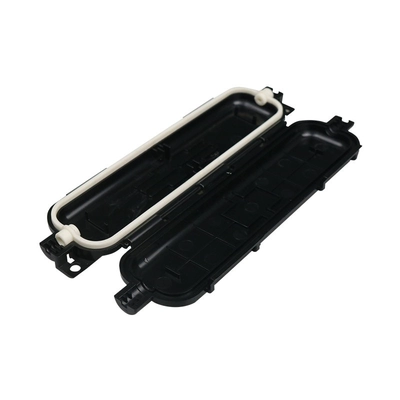

The fiber cable protection box is designed for FTTH drop cable connection, splicing, and protection in indoor environments. Inside, it can accommodate 1 SC simplex adapter and 2 fast connector terminations, making it suitable for protecting single-fiber connections at customer premises. The enclosure is made of high-quality ABS with a silicone rubber ring seal between cover and base, providing a compact, visually clean housing that offers economical, optimal protection for exposed single-fiber connectors.
Data Center
FTTH
Telecom
Key Benefits
1. Provides a compact
economical solution for protecting exposed single-fiber connectors in FTTH installations.
2. Waterproof sealing
helps safeguard fiber terminations from moisture and dust in indoor environments.
3. Flexible cable
entry options support both flat 2×3 mm and 3 mm round drop cables, simplifying deployment.
4. Wall-mountable
design with clean appearance improves installation aesthetics at the customer site.
Features
- Supports 1 SC simplex adapter and 2 fast connector connections inside.
- High-quality ABS material housing.
- Silicone rubber ring sealing between box cover and bottom for waterproof performance.
- Both sides support entry/exit of 2×3 mm FTTH drop cable or 3 mm round cable.
- Wall-mount design with 150 mm hole spacing.
- Available in black or white color options.
Certifications/compliance information
- Product name: Fiber cable protection box.
- Model: YG-FTTH-2W.
- Dimensions (H×W×D): 160×50×60 mm.
- Application: FTTH, FTTB, FTTx networks.
- Material: PC+ABS.
- Color: Black, White.
- Installation: Wall mounting / Pole mounting.
